WHY CHOOSE NORTHSIDE MACHINE AND TOOL?

Unmatched Precision & Reliability
Our expert team and advanced equipment consistently deliver flawless results with ultra-
tight tolerances and impeccable finishes.


Versatility in Every Project
From small intricate components to large-scale production runs, we handle it
all—prototyping to full production, tailored to your needs.


Innovative Technology
Equipped with cutting-edge CNC systems, we ensure every project is completed with
top-tier efficiency and precision.


Customer-Centric Approach
Your goals drive our process. We collaborate closely to provide custom solutions that not
only meet but surpass your expectations.

​

SERVICE AND CAPABILITIES

We offer everthing your project requires in the way of industrial,

mechanical, maintenance and design services.

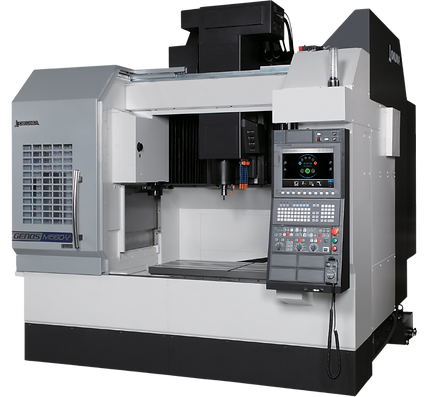

OKUMA GENOS M560-V CNC Mill

OKUMA GENOS M560-V CNC Mill.png

Work Envelope:

  • X-Axis Travel: 40.55 in (1,030 mm)

  • Y-Axis Travel: 22.05 in (560 mm)

  • Z-Axis Travel: 20.08 in (510 mm)

  • Table Size: 51.18 x 22.05 in

  • Max Load: 2,200 lbs (1,000 kg)

​

Ideal for applications in aerospace, automotive, and general manufacturing.

4H-60 DEVLIEG SPIRAMATIC JIGMIL HORIZONTAL MANUAL MILL

Work Envelope:

  • X-Axis Travel: 60 in (1,524 mm)

  • Y-Axis Travel: 40 in (1,016 mm)

  • Z-Axis Travel: 30 in (762 mm)

  • Table Size: 60 x 40 in (1,524 x 1,016 mm)

  • Max Table Load: 4,000 lbs (1,814 kg)

4H-60 DEVLIEG SPIRAMATIC JIGMIL HORIZONTAL MANUAL MILL.png

HAAS VF2 CNC MILL

Work Envelope:

  • X-Axis Travel: 30 in (762 mm)

  • Y-Axis Travel: 16 in (406 mm)

  • Z-Axis Travel: 20 in (508 mm)

  • Table Size: 36 x 14 in (914 x 356 mm)

  • Max Table Load: 1,000 lbs (454 kg)

​​

Perfect for small to medium-sized production runs, the Haas VF-2 is widely used in aerospace, automotive, and general manufacturing

HAAS VF2 CNC MILL.png

TM-1 TOOLROOM CNC MILL

TM-1 TOOLROOM CNC MILL_edited.png

Work Envelope:

  • X-Axis Travel: 30 in (762 mm)

  • Y-Axis Travel: 12 in (305 mm)

  • Z-Axis Travel: 16 in (406 mm)

  • Table Size: 36 x 12 in (914 x 305 mm)

  • Max Table Load: 500 lbs (227 kg)

4H-60 DEVLIEG SPIRAMATIC JIGMIL HORIZONTAL MANUAL MILL

Work Envelope:

  • X-Axis Travel: 60 in (1,524 mm)

  • Y-Axis Travel: 40 in (1,016 mm)

  • Z-Axis Travel: 30 in (762 mm)

  • Table Size: 60 x 40 in (1,524 x 1,016 mm)

  • Max Table Load: 4,000 lbs (1,814 kg)

​

Perfect for small to medium-sized production runs, the Haas VF-2 is widely used in aerospace, automotive, and general manufacturing

4H-60 DEVLIEG SPIRAMATIC JIGMIL HORIZONTAL MANUAL MILL.png

BRIDGEPORT SERIES I MANUAL MILL

BRIDGEPORT SERIES I MANUAL MILL.png

Work Envelope:

  • X-Axis Travel: 30 in (762 mm)

  • Y-Axis Travel: 12 in (305 mm)

  • Z-Axis Travel: 16 in (406 mm)

  • Table Size: 36 x 12 in (914 x 305 mm)

OKUMA GENOS L3000-e MY CNC LATHE

Work Envelope:

  • Max Turning Diameter: 15.7 in (400 mm)

  • Max Turning Length: 39.4 in (1,000 mm)

  • Chuck Size: 8 in (standard)

  • Spindle Speed: 5,000 RPM

  • Tool Capacity: 12 tools (turret)

  • Y-Axis Travel: 4.0 in (100 mm)

​

Ideal for precision parts in industries like automotive, aerospace, and general manufacturing.

OKUMA GENOS L3000-e MY CNC LATHE.png

OKUMA GENOS L400II  CNC LATHE

OKUMA GENOS L400II CNC LATHE.png

Work Envelope:

  • Max Turning Diameter: 16.1 in (410 mm)

  • Max Turning Length: 25.6 in (650 mm)

  • Chuck Size: 8 in (standard)

  • Spindle Speed: 5,000 RPM

​

Ideal for industries such as automotive, aerospace, and general manufacturing, the GENOS L400II delivers reliability, precision, and productivity.

LARGE NATIONAL MANUAL LATHE

Work Envelope:

  • Max Turning Diameter: Up to 48 in (

  • Max Turning Length: up to 120 in (3,048 mm)

  • Chuck Size: 18 in (standard)

​​

The Large National Lathe is engineered to handle large-scale and complex parts with ease, making it an ideal choice for industries that require heavy-duty machining and high precision.

LARGE NATIONAL MANUAL LATHE (1).png

MEDIUM DOALL MANUAL LATHE

MEDIUM DOALL MANUAL LATHE.png

Work Envelope:

  • Max Turning Diameter: 13 in (330 mm)

  • Max Turning Length: 60 in (1,016 mm)

  • Chuck Size: 10 in (standard)

​​

​

COSEN 320NC HORIZONTAL SAW

 Key Features and Specifications:

  • Cutting Capacity:

    • Round: Up to 12.6 in (320 mm)

    • Square: Up to 12.6 in (320 mm)

    • Rectangular: Up to 12.6 x 16.5 in (320 x 420 mm)

    • Cutting Accuracy: ±0.004 in (0.1 mm)

​​

Applications:

  • Ideal for cutting large volumes of metal bars, tubes, and profiles

  • Suitable for high-precision cuts on a wide range of materials

  • Frequently used in aerospace, automotive, and general manufacturing sectors

  • Capable of handling heavy-duty cutting tasks with minimal downtime

COSEN 320NC HORIZONTAL SAW.png

LANDIS 12 X 36 OD/ID GRINDER

LANDIS 12 X 36 OD_ID GRINDER.png

Work Envelope:

  • Grinding Length: 36 in (914 mm)

  • Grinding Diameter (OD): 12 in (305 mm)

  • ID Grinding Capacity: Up to 6 in (152 mm)

  • Max Workpiece Weight: 250 lbs (113 kg)

  • Spindle Speed: 1,800 RPM (standard)

​​

​The Landis 12 x 36 OD/ID Grinder is perfect for cylindrical grinding applications in industries such as aerospace, automotive, and general manufacturing, offering both flexibility and precision.

ADDITIONAL CAPABILITIES:

  • Welding Services: Northside Machine & Tool delivers strong, reliable welds across diverse materials. Skilled in manual and automated techniques, we provide custom solutions for industries like aerospace, automotive, heavy equipment, and manufacturing.

  • Prototype and Low-Volume Production: Fast turnaround times for prototypes and small production batches.

  • Large-Scale Machining: Equipment for handling large workpieces with high precision.

​​

Custom Tooling and Fixture Design: In-house design and manufacturing of tools and fixtures to support custom production needs.
